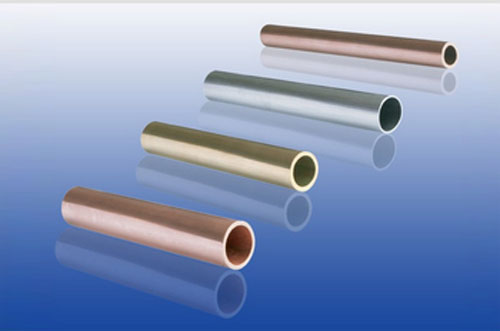

Circular rigid waveguide tube
![Circular rigid waveguide tube]()
![Circular rigid waveguide tube]()
![Circular rigid waveguide tube]()
Features:
● Material : 3A21 AL , 6063 AL , 96 Cu
Circular Rigid Waveguide Tubing
| Overall Diameter（mm） | Wall Thickness （mm） | ||||||
|
Nominal Size |
Allowable Deviation（±） |
0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 |
| Allowable Deviation （±） | |||||||
| 3—15 | 0.05 | 0.05 | 0.06 | 0.08 | 0.08 | 0.09 | 0.09 |
| 15—25 | 0.06 | 0.05 | 0.06 | 0.08 | 0.08 | 0.1 | 0.1 |
| 25—50 | 0.08 | 0.08 | 0.08 | 0.1 | 0.1 | ||
| 50—75 | 0.1 | 0.12 | 0.12 | 0.1 | 0.15 | ||
| 75—100 | 0.13 | 0.12 | 0.12 | 0.13 | 0.15 | ||
